Washing machine - How to replace the drum lifter (1)

Gilt für

  • Washing machine

Lösung

Refer always to your product’s user manual safety information before any repair or maintenance operation. https://www.electrolux.com/support/user-manuals/

WARNING! RISK OF ELECTRIC SHOCK

Before any repair or maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

WARNING! RISK OF INJURY

Always take care when moving appliances. For heavy appliances it's safest for two persons to move it. Always use safety gloves and safety footwear. Wear safety gloves at all times to protect from cuts from sharp edges.

WARNING! RISK OF EYE INJURY

Wear safety glasses if you perform maintenance or repair work involving springs.

WARNING! RISK OF PINCHING

Wear safety glovesif you perform maintenance or repair work involving belts.

WARNING! CHOKING HAZARD

Small parts not for children under 3 years. Keep all small parts and packaging out of reach of children.

Only adults should use or install the product.

Before any maintenance operation, turn off water supply to the appliance. Always empty the appliance of all the water. Any maintenance should be carried out with the appliance standing upright. Residual water could damage electronics if the appliance is placed on any of its sides.

Make sure to use the product only for its designated purpose and verify that it is a compatible part for the intended product.

Do not use or install the product if damaged.

Please note that self-repair or nonprofessional repair can have safety consequences if not done properly and might void the warranty. Possessing the necessary know-how is essential.

HOW TO REPLACE DRUM LIFTER

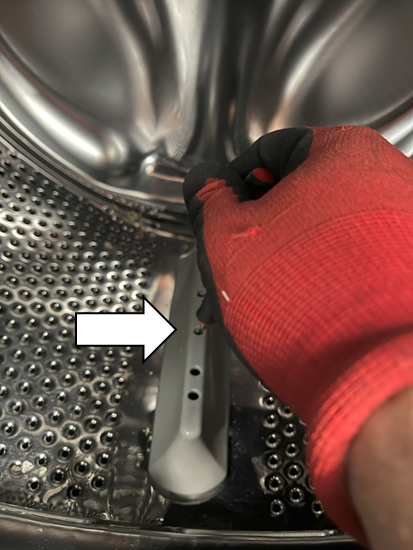

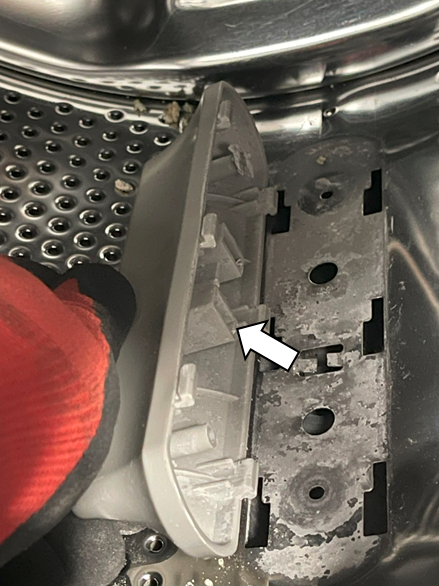

1. Using a small, but sturdy flat bladed screwdriver press down the securing tabs inside the drum lifter to release the lifter’s tension to the drum.

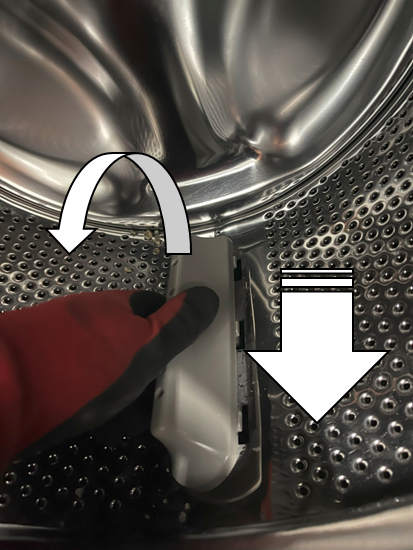

2. Once both tabs have been compressed you will be able to slide the lifter towards you to release.

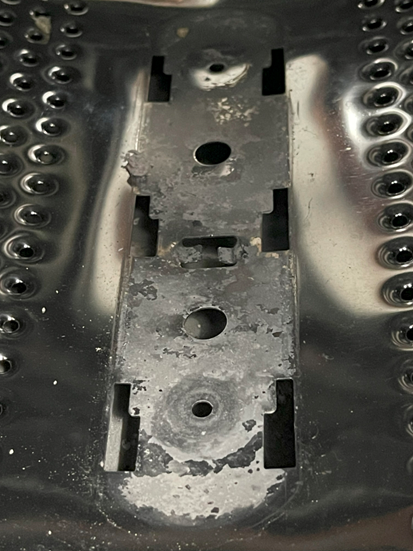

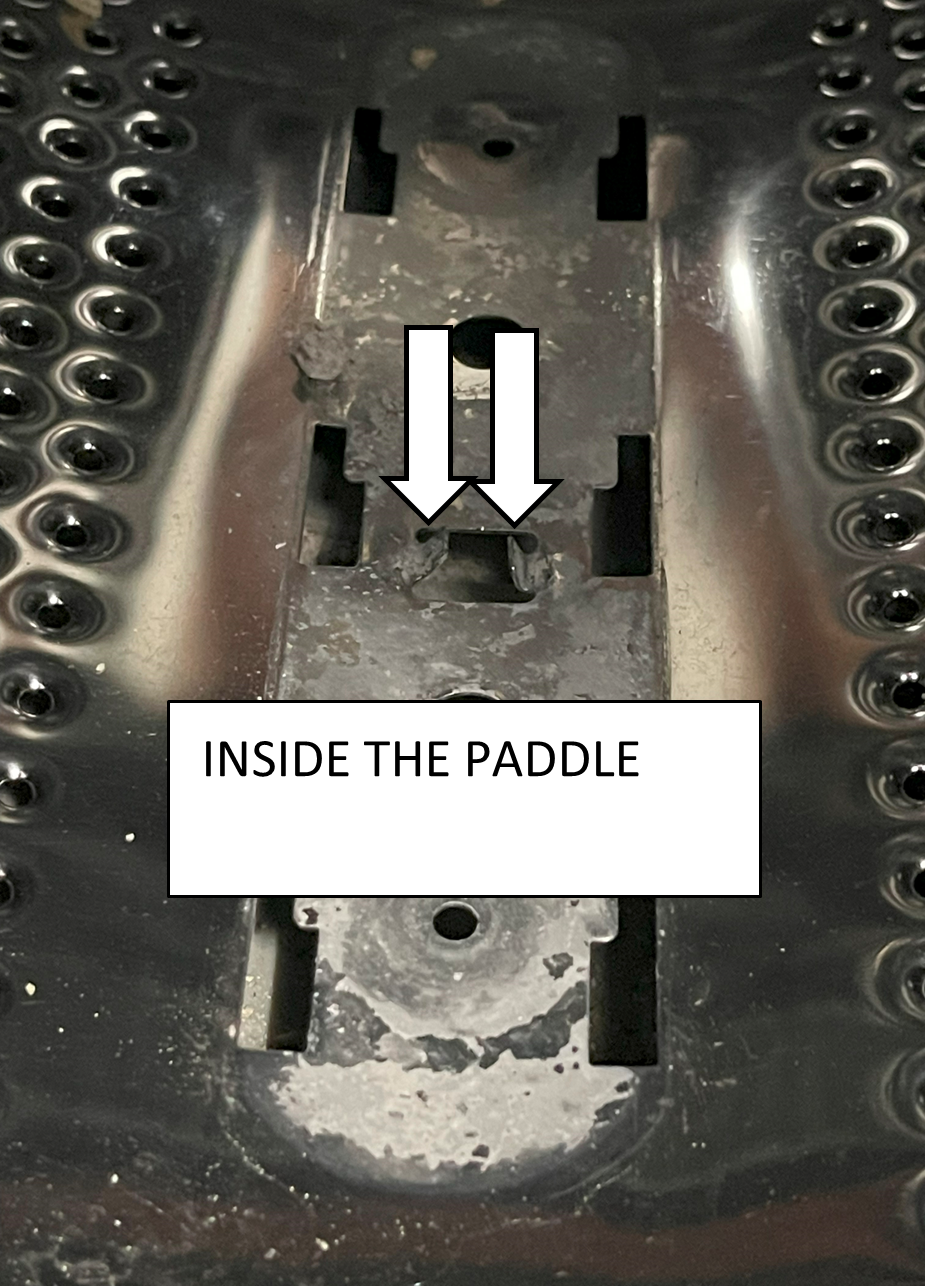

3. To reassemble, repeat steps in reverse order. Ensure that the paddle is properly locked into place by levering up the two tabs into the plastic housing in the drum lifter to create tension after slotting the paddle back into position. Also ensure all six feet on the drum lifter and in their slots on the drum.
